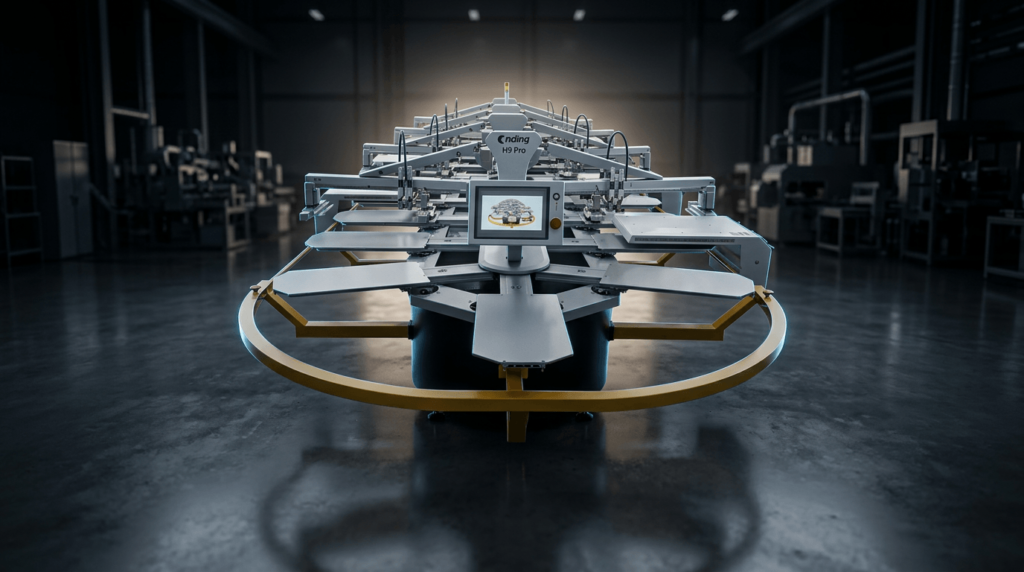

Cnding NB Plus Oval Screen Printer Machine
The Cnding NB Plus Oval Screen Printing Machine combines smart servo drives, precise temperature control, and a high-efficiency design, backed by 38 patents and ISO 9001 certification. It offers flexible expansion from 6 to 24 color stations, rapid 90-second plate changes, and an impressive production rate of up to 770 pieces per hour. With its innovative elliptical track and compatibility with multiple processes, the Cnding NB Plus sets a new standard for excellence in the screen printing industry!
| NB Colors | 6pcs | 8pcs | 10pcs | 12pcs | 14pcs | 16pcs | 18pcs | 20pcs | 24pcs |
|---|---|---|---|---|---|---|---|---|---|
| No. of pallets | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | 78 |
| Printing Size | 60 × 70 cm | ||||||||
| Power consumption (kw) | 4.5 | 5.5 | 8.0 | 9.0 | 10.0 | 10.5 | 11.5 | 12.0 | 14.0 |
| Air consumption (Litre/min) | 350 | 500 | 650 | 800 | 950 | 1100 | 1250 | 1400 | 1700 |
| Length (cm) | 1021 | 1249 | 1477 | 1705 | 1933 | 2161 | 2389 | 2617 | 3087 |
| Width (cm) | 330 | ||||||||
| Height (cm) | 150 | ||||||||
| Weight (Kg) | 5500 | 6500 | 7500 | 8500 | 9500 | 10500 | 11500 | 12500 | 14500 |
| Production (NB-16 colors) | 770 pcs/h | ||||||||
