H9 PRO Series — Full-Servo Oval Screen Printing Machine

CE certified · High-precision full-servo oval press for garments and cut pieces

H9 PRO is CNDING’s flagship full-servo oval press built for garment and cut-piece production. A full-servo drivetrain paired with energy-saving servo motors locks registration at ±0.01 mm and holds multicolor consistency through 24/7 duty cycles — the workhorse choice for standardized, high-yield production lines.

Cut pieces Garments Multicolor printing

Technical Specifications

Registration accuracy
±0.01 mm

Print size
60 × 70 cm

Max output
1,200 pcs / hour

Color stations
4 – 40 stations

Drive system
Dual-servo / full-servo drive

Energy savings
30% lower than conventional ovals

HMI
Touchscreen HMI · built-in self-diagnostics

Materials
Garments / cut pieces (T-shirts, hoodies, sportswear, etc.)

Certifications
CE / ISO 9001 · 38 patents

Warranty
12-month full-machine warranty

Support
24/7 online + 48h remote response

Core Features

High-precision oval press for garments and cut pieces
Engineered for factories that demand consistent quality and high efficiency
±0.01 mm registration accuracy
12-month warranty
CE certified
24/7 online technical support
Energy-saving servo motors

Detailed Features

Precision & Stability 🎯

±0.01 mm registration — eliminates color shifts on multicolor and high-detail artwork
Dual servo motors — 360° accurate control for smooth, consistent printing

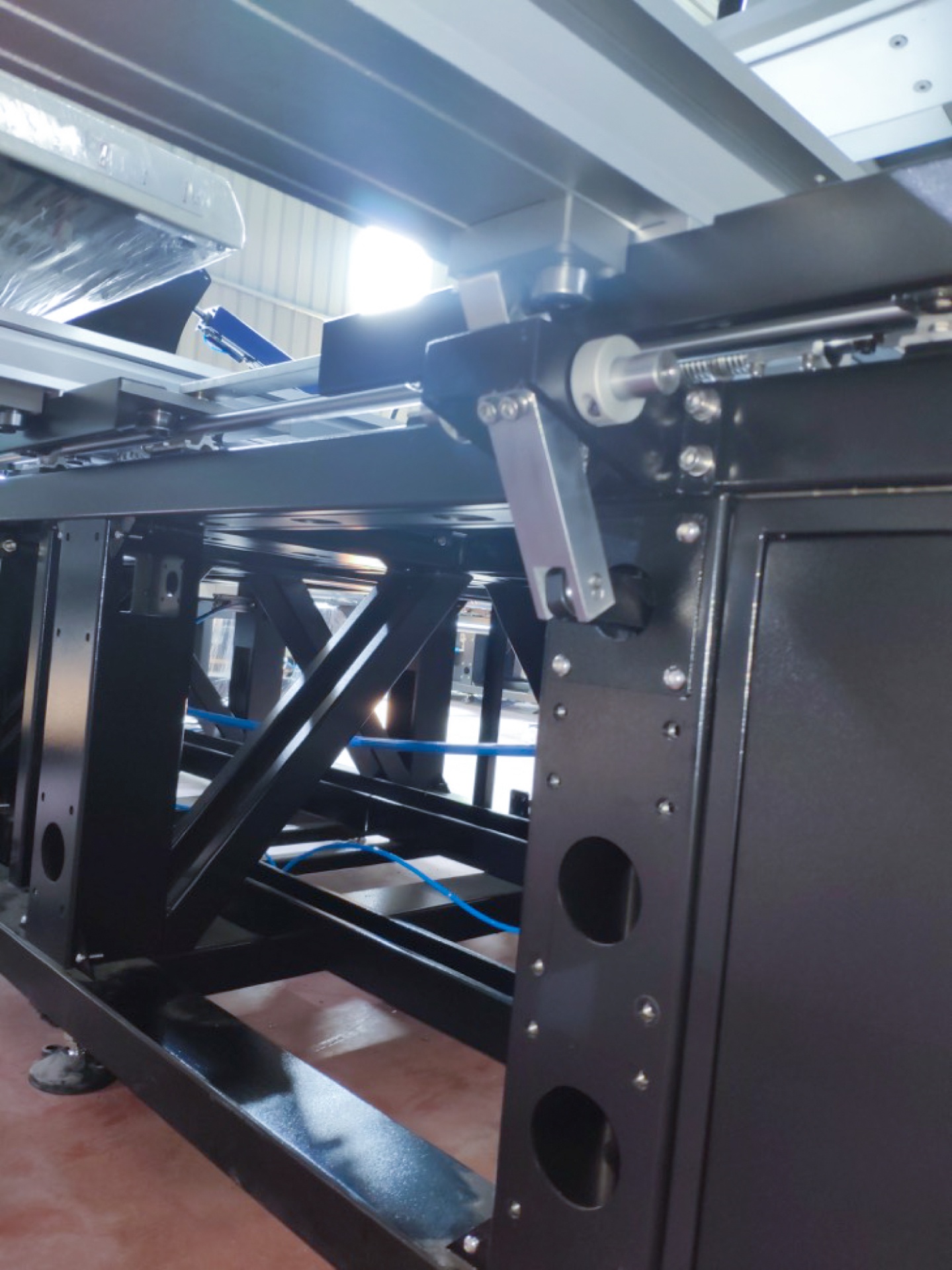

Aviation-grade aluminum pallets — warp-resistant for long-run consistency

Throughput & Capacity ⚡

Up to 1,200 pcs/hour — engineered for large orders and quick delivery
4–40 color stations — flexibly matches different capacity needs
Fast job changes — dramatically reduces changeover downtime

Energy Saving & Smart 💡

30% energy savings — significantly lowers operating costs vs. conventional ovals

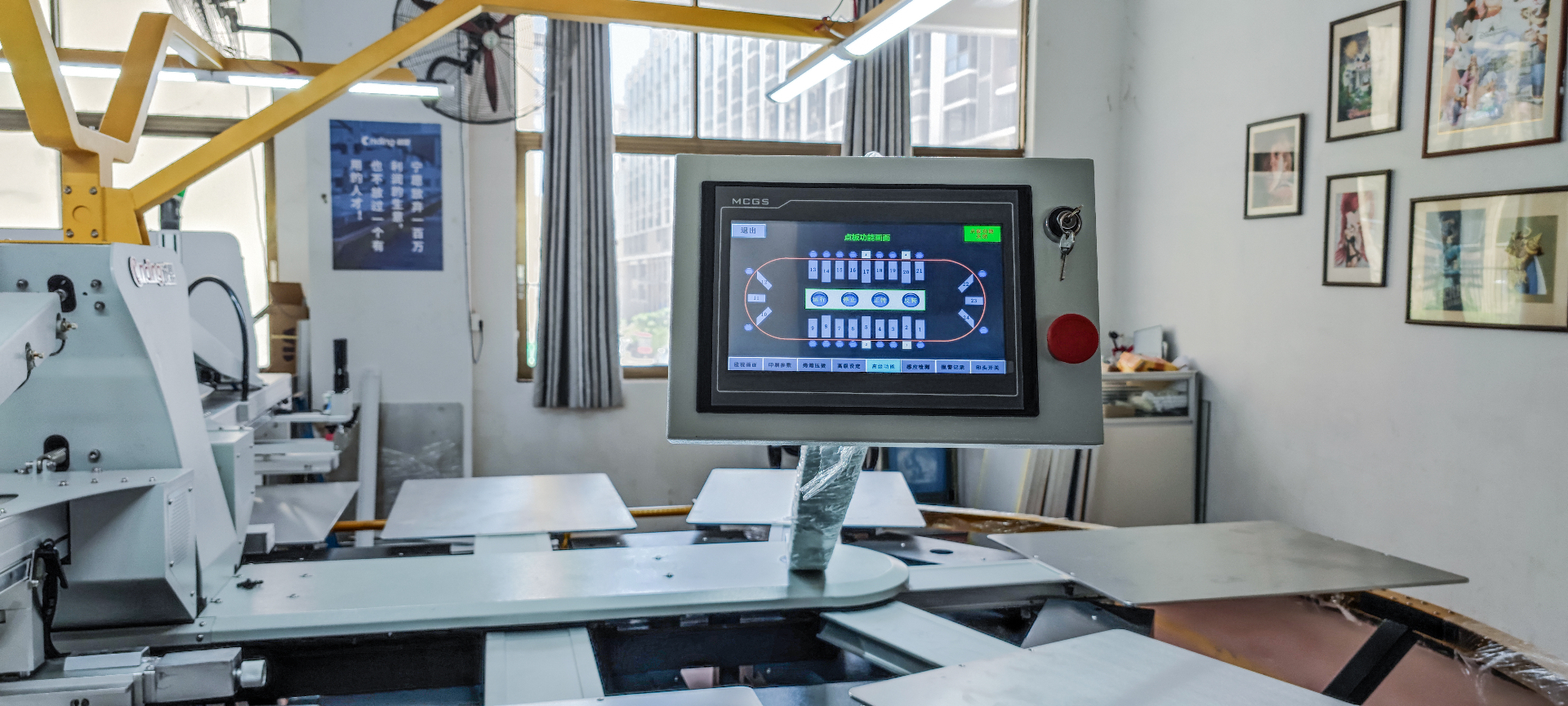

Touchscreen HMI — intuitive operation with built-in self-diagnostics
Remote technical support — 48h response, minimizes production risk

Durability & Service 🛠

ISO 9001 and CE certified — meets international quality and safety standards
38 patented technologies — market-proven innovation and reliability
12-month full-machine warranty — parts and service fully covered

Technical Specifications

H9 PRO Series — Technical Specifications

Item	4pcs	6pcs	8pcs	10pcs	12pcs	14pcs	16pcs	18pcs	20pcs	24pcs
Printing Stations	18	24	30	36	42	48	54	60	66	78
Printing Size	60 × 70 cm
Power (kW)	3.8	5.1	6.8	10.4	11.4	12.4	13.5	14.6	15.6	17.8
Air Pressure (L/min)	110	200	350	500	650	800	950	1100	1250	1550
Length (cm)	795	1024	1253	1482	1710	1939	2167	2396	2625	3082
Width (cm)	330
Height (cm)	150
Weight (kg)	3000	3650	4450	5250	6500	6950	7750	8550	9350	10950
Production (H9Pro-16 Colors)	700 pcs/h
